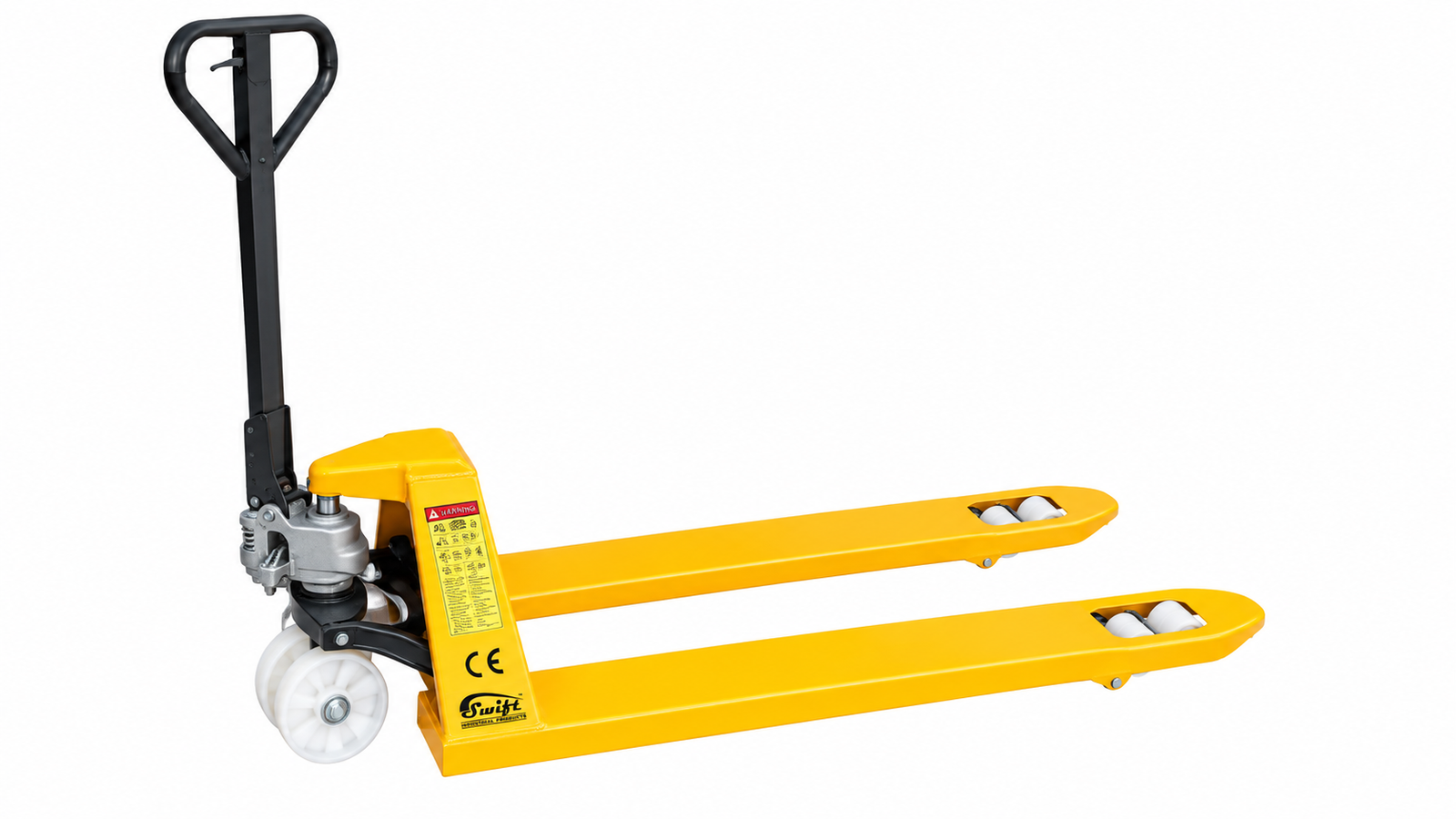

HAND PALLET TRUCK SWIFT MH-HPT3-1150

Description

Download Technical Datasheet

Specification Details
Product Name Hand Pallet Truck
Model No. MH-HPT3-1150
Load Capacity 3000 Kg
Min Fork Height (A) 85 mm
Max Fork Height (B) 200 mm
Minimum Height (C) 435 mm
Overall Height (D) 1220 mm
Fork Width (E) 160 mm
Fork Distance (In-In) (F) 365 mm
Fork Distance (Out-Out) (G) 685 mm
Fork Length (H) 1150 mm
HPT Overall Length (I) 1530 mm
Steering Wheel Diameter Dia 180 × 50 mm
Fork Roller Diameter Dia 80 × 70 mm
Key Features
Heavy-Duty Sturdy Design for reliable performance.
High-Quality Double Ball Bearings ensure smooth load handling.
Durable C-Section Chassis for greater strength and longevity.
Compact Pump Unit with hand chrome plunger for efficient lifting.
Loop-Type Spring Handle with a three-level release system.
Fork Entry Rollers for easy pallet entry and exit.
Applications
Warehouses & Logistics – Efficient pallet transportation.
Manufacturing & Shop Floors – Heavy load handling.
Retail & Distribution Centers – Smooth material movement.
